Available Now!
Released May 2014

All prices quoted include GST



Features
  • Ready-to-run
  • 36 Inch metal disc wheels (RP25-110)
  • Scale size metal knuckle couplers
  • Highly detailed underframe
  • Real metal chain for the hand brake
  • Separately applied metal parts
  • Metal etch end steps
  • 5 Different liveries available
  • Metal handrails & brake piping
  • Highly detailed bogies with bogie printing & separately applied brake equipment
  • Factory painted & decorated.
  • 18" Recommended minimum radius
  • Will operate on code 70, 83 & 100 rail
  • Plastic (ABS) body
  • 3 Different body versions tooled






Flat Roof Version

WAGR (Small Logo)

WLV-1

WVX Louvered Van with Flat Roof, Yellow with Small WAGR Logo & Yellow Bogies, 4 Car Pack

$239.95

Sold Out



Wagon Numbers: WVX 30836, 30808, 30807, 30704





WLV-2 WBAX Louvered Van with Flat Roof, Yellow with Small WAGR Logo, 4 Car Pack

$239.95

  Wagon Numbers: WBAX 30806-V, 30703-H, 30708-J, 30725-V


WAGR (Large Logo)

WLV-3

WBAX Louvered Van with Flat Roof, Yellow with Large WAGR Logo, 4 Car Pack

$239.95



Wagon Numbers: WBAX 30804-D, 30805-M, 30824-T, 30820-G




West Rail

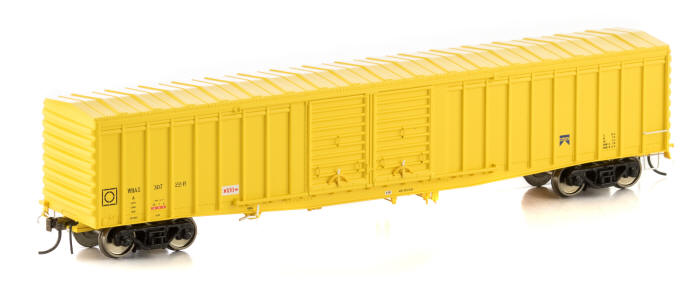

WLV-4

WBAX Louvered Van with Flat Roof, Yellow with West Rail Logo, 4 Car Pack

$239.95



Wagon Numbers: WBAX 30737-B, 30722-R, 30731-Q, 30728-C




Curved Roof Version

WAGR (Small Logo)

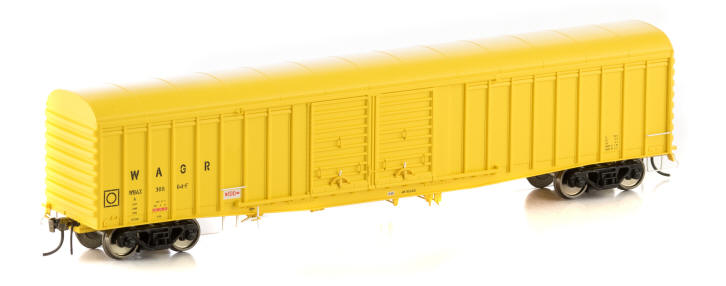

WLV-5

WBAX Louvered Van with Curved Roof, Yellow with Small WAGR Logo, 4 Car Pack

$239.95



Wagon Numbers: WBAX 30864-F, 30894-G, 30953-S, 30900-U




WAGR (Large Logo)

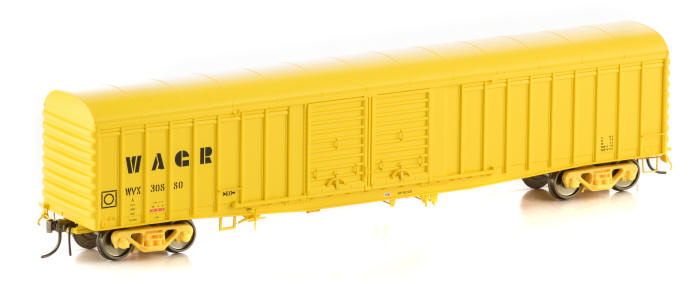

WLV-6

WVX Louvered Van with Curved Roof, Yellow with Large WAGR Logo & Yellow Bogies, 4 Car Pack

$239.95

Sold Out



Wagon Numbers: WVX 30880, 30963, 30943, 30940

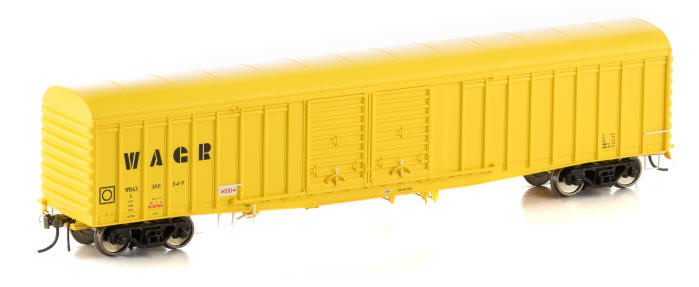

WLV-7 WBAX Louvered Van with Curved Roof, Yellow with Large WAGR Logo, 4 Car Pack

$239.95

Sold Out

  Wagon Numbers: WBAX 30923-R, 30983-A, 30884-V, 30917-V


West Rail

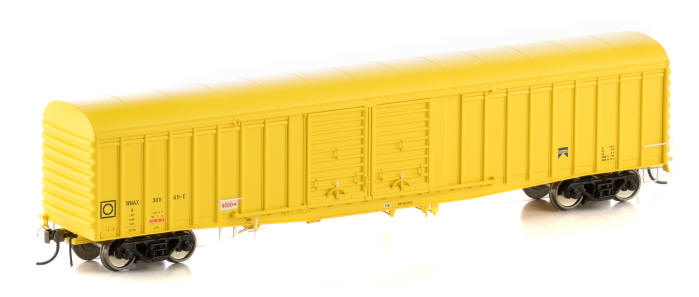

WLV-8

WBAX Louvered Van with Curved Roof, Yellow with West Rail Logo, 4 Car Pack

$239.95



Wagon Numbers: WBAX 30965-V, 30952-J, 30869-E, 30931-H




VR (No Logo)

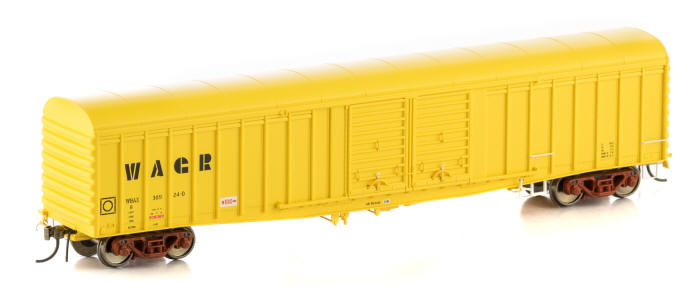

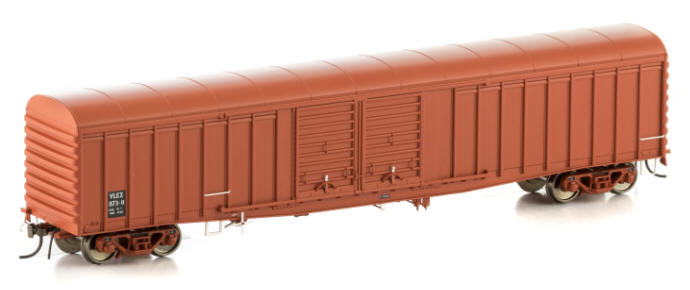

WLV-9

VLEX/WBAX Louvered Van with Curved Roof, 3 x VR Wagon Red with No Logo + 1 x WAGR Large Logo, 4 Car Pack

$239.95

Sold Out



Wagon Numbers: VLEX 874-G, 989-U, 873-U + WBAX 30924-D




Manildra

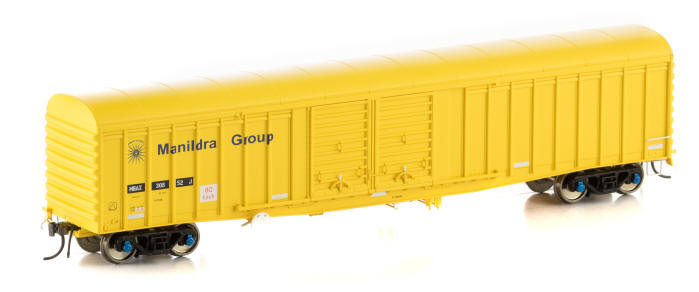

WLV-10

MBAX Louvered Van with Curved Roof, Yellow with Manildra Logo, 4 Car Pack

$239.95



Wagon Numbers: MBAX 30869-E, 30888-L, 30852-J, 30886-G



WLV-11 MBAX Louvered Van with Curved Roof, Yellow with Manildra Logo, 4 Car Pack

$239.95

  Wagon Numbers: MBAX 30866-N, 30879-C, 30900-K, 30915-R


WBAX LOUVERED VAN – PROTOTYPE INFORMATION

In 1967 the WAGR started constructing various wagon types in preparation for the arrival of the standard gauge railway to Perth in 1970.

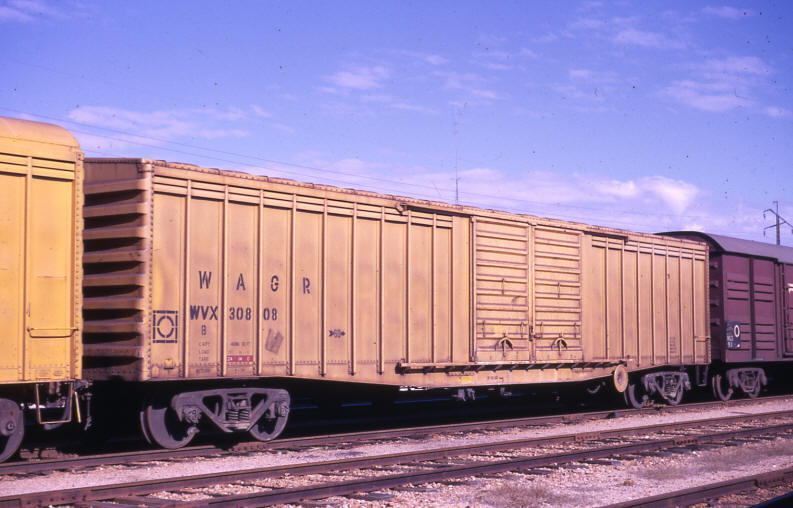

The first type of louvered van originally coded  WVX entered service in 1967 and ran on temporary narrow gauge bogies in WA until the standard gauge line was opened.

These High Capacity wagons numbered 30701-30777 were built at WAGRs Midland workshops.

They have a capacity of 115 c.u.m2 at 51 ton, a tare weight of 25 ton are 17.12 meters long and were rated for 100km/hr. The wagons have two large sliding doors per side for loading of palletised loads with forklifts

In 1969 a further identical batch was constructed by Midland Workshops numbers 30778-30860.

In 1970 a third batch was constructed by Mechanical Handling of WA numbered 30861-30995 bringing the fleet up to a total of 295 wagons. The 3rd batch differed from the first two batches in that they were fitted with a curved roof to enable easier access for forklifts. The first two batches had an American box car style low profile angular roof.

These wagons have travelled over the entire standard gauge network and also been over many Broad Gauge lines when bogie exchanged.

These wagons travelled from Perth to Kalgoorlie with general freight and goods for the Gold mining district of Kalgoorlie as well as bringing all kinds of goods from the eastern states to Perth.

Regular traffics in NSW and Victoria for the wagons were Pet food from Bathurst or Wodonga and White Goods from Email factory at Orange which were dispatched all over the country.

They were used for Fruit and Veg and canned foods from the Griffith district of NSW and Northern Victoria.

The wagons have been recorded in locations as diverse as  Brisbane, Ballina, Mount Gambier, South Dynon, Alice Springs, Sydney, Tamworth, Dubbo, Parkes, Geelong, Horsham, Ararat, Adelaide and Port Pirie and of course their home state of WA.

The wagons were painted WAGR Golden Yellow with Black WAGR lettering, later wagons had larger WAGR lettering. In 1979 four letter coding wagons became WBAX. Some wagons were repainted during maintenance and had a Blue Westrail logo applied.

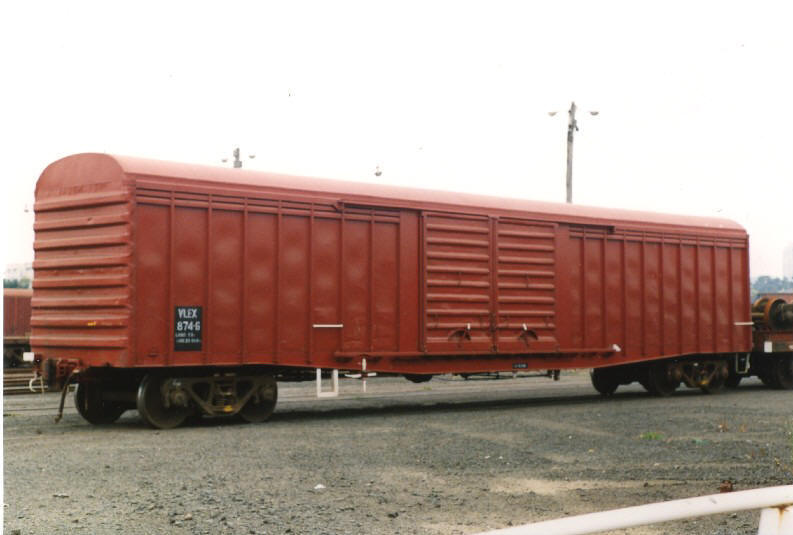

In the late 1990s a major derailment in WA destroyed 3 VLEX wagons and to replace these WAGR  supplied 3 WBAX wagons which were painted a dark red colour and recoded VLEX 873U,874G and 989U.

Some wagons were pressed into service with Nation Rail in its infancy but these wagons were later returned to Westrail.

When Westrail was sold to ARG these wagons went into the ownership of  ARG.

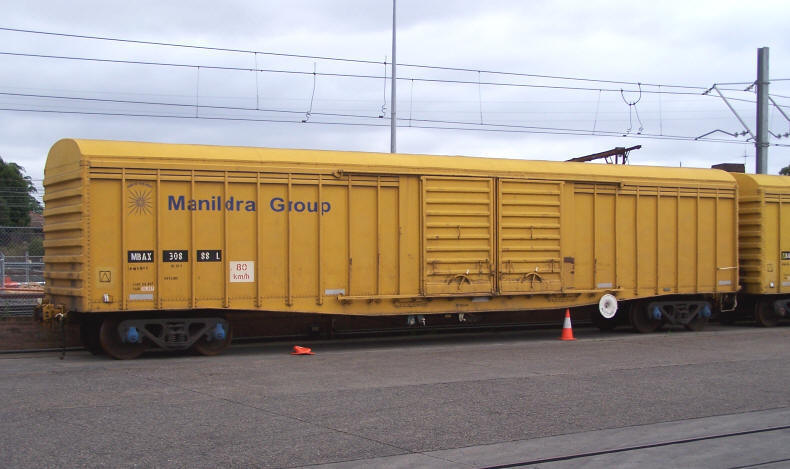

ARG secured a group of long term contracts with Manildra Group in NSW and one of these  contracts required the use of  12 WBAX wagons for Manildra-Sydney (Clyde) bagged flour traffic. These wagons were painted a similar Yellow with Manildra logos and were coded MBAX.

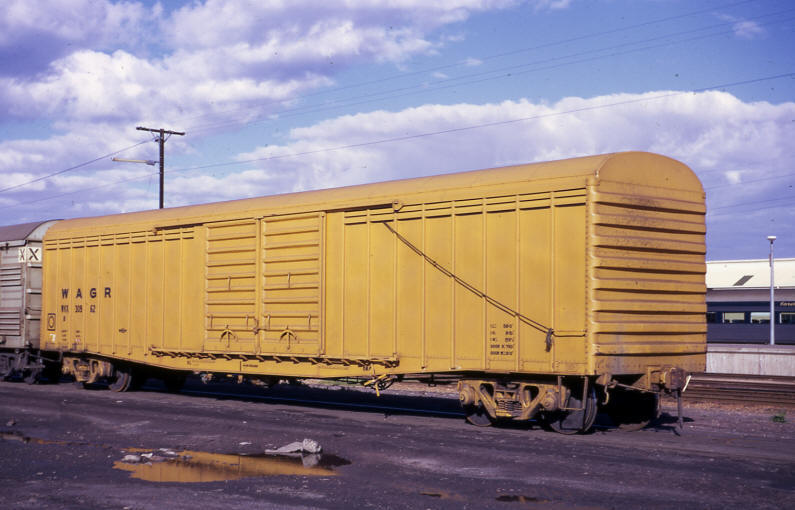

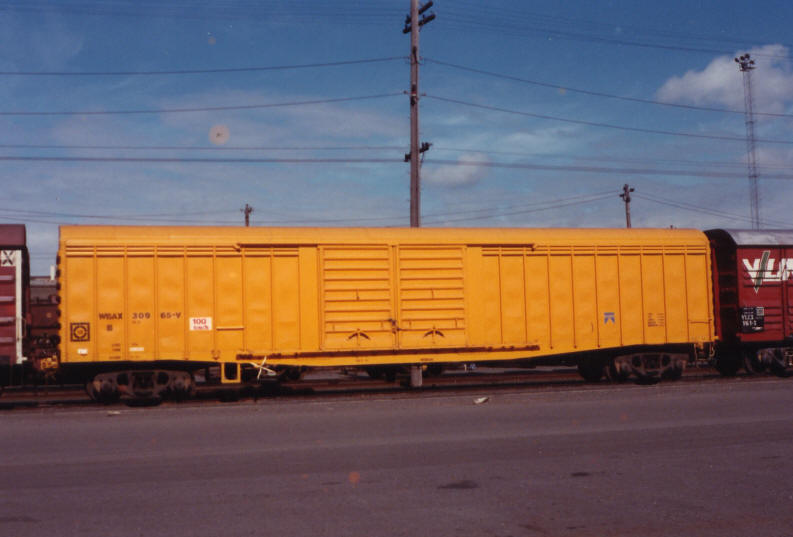

WBAX LOUVERED VAN – PROTOTYPE PHOTOS
